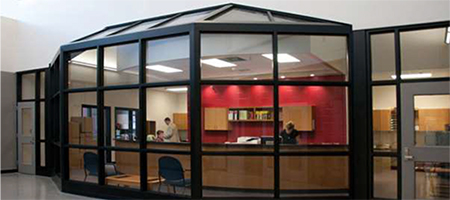

Standard Frames

Standard masonry, drywall frames have precision die-cut corners with positive locking tabs to assure rigid assembly connections. Standard frames are available from France Metal in series, profile, face dimensions, gauges, and door opening sizes to fit most any need in the construction industry today. In addition, France Metal can modify and weld frames to expand the variety of frames available even further.

Features

Sheet Thickness: 1.5mm, level (2), Heavy Duty
Jamb depth 150 mm.
Knock down corners.
Existing opening anchors (EO/N) for masonry applications.
Z-anchors (MSZ) for dry wall applications.
4.2 mm thick steel hinges. 4.5" (114.3mm) height.
Plaster guard box @ back of hardware cut outs.
3 silencers (Rubber Mutes) @ single leaf frame lock jamb.
OR 2 silencers (Rubber Mutes) @ double leaves frame head.

Optional Features

Fire rated Label up to 3 hours.
Bullet resistant Label up to level 8.
Hot - dipped galvanized steel sheets Conforming to ASTM A526 or A642 & A525.
Sheet thickness:
Level (3), extra heavy duty, 2.0 mm thick.
Level (4), Maximum duty, 2.5 mm thick.
Jamb Depth up to 350 mm.
Welded corners with temporary bottom spreader bars.
Frame Fixing Anchors:
EO/Tube - WSZS - SFA - SLFA
Perimeter weather & cold smoke gasket @ CFWK profiles.
4" (101.6 mm) or 5" (127 mm) height hinge reinforcement.
Electric strike preparation.
Four Sided for Access Panels.
Glazing beads for Fixed type Windows.
30 mm stop for fixed louvers.

Frame Profile

Single Rabbet

Single Rabbet Weather Kerf

Double Egress

Double Rabbet

Double Rabbet Weather Kerf

Frame Nomenclature

Frame Fixing Anchors

Metal Stud

Existing Opening

Existing Opening

Floor

Wire Masonry
